Darkman

01 · Overview

Credits, then the streets

Once the first level has loaded, the title alternates between two pages: the credits, which name Finlay Munro for the code, Noel Hines for the graphics, and Jonathan Dunn for the sound, and a table of the day's top scores. Fire on the joystick in port 2 starts play.

The credits page of the title screen.

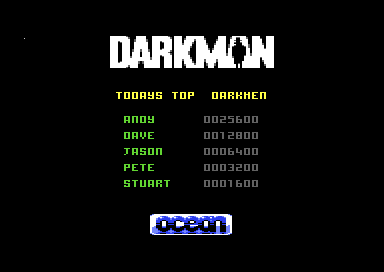

The other page of the title: TODAYS TOP DARKMEN.

The first level is a street scene with a brick wall and shop signs, where Darkman fights gangsters in suits. A panel under the play area holds the score, an energy bar, and a portrait of Darkman. The Maps / levels tab draws all six levels from the bytes of their files.

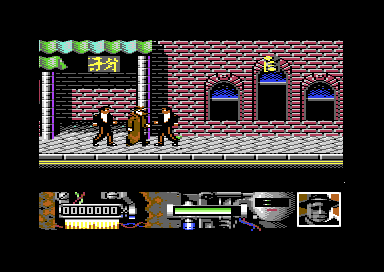

Level 1, a few seconds into play.

02 · Loading

Six levels, one at a time

A small loader stays in memory at $0400 for the whole game. Before each level, the routine at $0625 puts up a plain text screen and waits for fire. Before level 1 and level 4, the screen says which side of the disk to insert, and before the other levels it reads PRESS FIRE TO LOAD NEXT LEVEL.

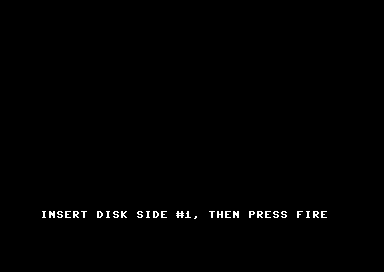

The prompt before the first load.

The loop at $0407 then loads the two files of the level whose number is held at $0435, retries after a disk error, adds one to the number, and jumps to $0A20. Each level's first file starts at that address, and its second fills $BF00 onwards, under the chips and the ROMs. Coloured stripes run across the screen while a load is under way. A level ends by jumping back into the loader: levels 1 to 5 jump to $0407 when they are done, and the levels after the first use $0404, which starts the index again at 0, after a game over.

The sound driver is never loaded as a file of its own. Level 1 carries two copies of it, one for the title tunes and one for the sound effects, and copies the second to $B0C8, in a stretch of memory that no later load writes. Every later level calls that copy. The Music tab plays both.

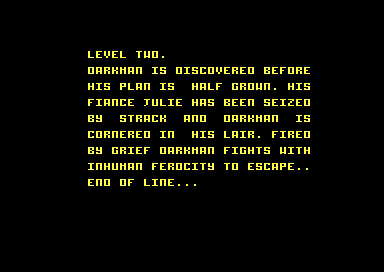

The briefing before level 2.

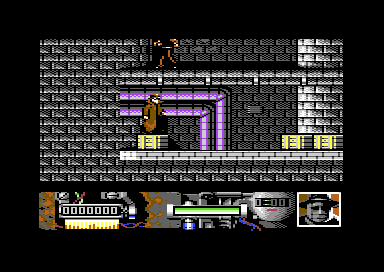

Level 2 in play.

03 · Controls

Walk, jump, crouch, and strike

The joystick in port 2 does everything. Left and right walk, four pixels every four frames. Up jumps, and Darkman rises 26 lines in 32 frames. Down crouches. Fire alone throws a punch, and fire with down throws a low strike that carries him forward ($2979).

The third raster interrupt, $1D43, copies the joystick to $203B once a frame, except while the stun timer after a hit is running. The keyboard is read once a frame by $0E30, which leaves an ASCII key code in $0E2F. The P key gives $50, and the routine at $1777 then toggles the pause flag at $1EF2, so a second press of P resumes play. Two more keys do something only after a secret code has been typed: the Discoveries tab has it.

04 · One frame, rebuilt from memory

A text screen over a bitmap panel, with eight black lines between them

Level 1's play screen is a text screen with the street in it, over a bitmap with the panel in it. Four raster interrupts switch the video chip from one to the other every frame. The picture below is drawn by this page from the bytes in memory and the writes the game's own interrupt handlers make to the chip.

From the top of the frame to the bottom, the video chip is in four states. The interrupts change them, and the raster lines in the first column are read from the registers of the recorded frame, not from the code.

The strip shows nothing from memory. Interrupt 3 sets extended colour mode in $D011 while multicolour in $D016 is still on, a combination the video chip does not define, and the chip draws black for as long as it lasts. The strip covers the eight lines 199 to 206. Inside it the game changes $D018 from the character set at $C000 to the bitmap at $E000, and interrupt 4 adds bitmap mode near the start of line 206 and removes extended colour mode near its end, as the simulator counts the cycles, so that the first line of the panel is 207. The code does not say what the strip is for.

The vertical scroll of 7 that interrupt 3 writes puts the first line of each character row on lines 199, 207, 215, and so on, where the play field's rows begin on multiples of 8. The last row of the play field is cut off after seven lines for that reason, and the panel's first row, row 19 of the matrix at $CC00, begins on line 207. The panel's colours are that matrix and colour RAM; its pixels are the bitmap at $E000, eight bytes to each matrix cell.

The sprites are the part of the screen that is not split. Every write to a sprite register or pointer in the recorded frame falls between lines 11 and 56, apart from the two shared colours on line 198, and the first sprite line is 120. Interrupt 3 changes the two shared sprite colours to black on line 198, below the last sprite line. No sprite is moved after it has been drawn, so the frame does not multiplex them: eight sprites cover the whole screen. Sprites 0 and 1 are Darkman, one above the other, drawn over sprite 2, which is also Darkman and twice as tall. Sprites 3 and 4 are one enemy, a pair stacked in the same way, and sprites 5 and 6 are the other. Sprite 7 is the exit marker, and while an enemy is on the screen the game puts it on line 1, under the top border, where none of it shows.

05 · The four interrupts

Four raster interrupts draw the screen and run the game

Each interrupt writes the line of the next one to $D012 and the next one's address to the vector at $FFFE, so the four run in a ring: on line 10, line 80, line 198, and line 205, and then line 10 again.

Interrupt 1, $1E21, sets the text screen and then runs one step of the game: Darkman's move ($265E), the exit marker ($354A), the enemies ($3725), the objects ($3297), the shot ($4140), and the tests for touching an exit or an object. Along the way the handler places all eight sprites, so that every sprite register is set before the first sprite line.

Interrupt 2, $1EF4, plays the sound ($B176) and reads the keyboard ($0E30). The handler also writes the scroll in $D016 and the background colours in $D022 and $D023, and moves sprite 0 or sprite 1 eight pixels sideways when the flag at $2768 or $2F67 is set ($1F40). In the recorded frame the registers already hold the values it writes, so the screen is the same on both sides of line 80. The code does not say why they are written again.

Interrupt 3, $1D43, begins the switch to the panel. The handler sets extended colour mode, 25 rows, and the vertical scroll of 7 in $D011, and it blacks the border and the sprites' shared colours. Interrupt 3 also counts down the stun timer ($29F3) and the hit grace counter ($29F4), and reads joystick port 2 into $203B unless the stun timer is still running after a hit.

Interrupt 4, $1DBF, finishes the switch. A run of 17 NOPs holds back its first write to $D011, so that, in the recording, the write falls early in line 206. The handler then points the vector back at interrupt 1 and, unless the game is paused, erases the shot ($41EF), tests the shot against Darkman ($4636), and scrolls the play field ($2066). All three run after the last line of the play field has been drawn.

The main loop at $179E is the only code that runs outside the interrupts. Each pass redraws the panel's energy bar ($4449) and the seven figures of the score ($44FD), checks for the space bar ($1A0C) and the pause key ($1777), and then the loop waits for the flag that the NMI at $2030 sets. The loop leaves for $4A8F when $1A1E is set, and for the game-over code at $195C when the flag at $0A11 and the energy at $43E3 are both zero.

06 · Enemies and pickups

Seventy objects, eleven slots

Levels 2, 4, and 6 keep their enemies, pickups, and hazards in one list of objects, 84 in level 2, 73 in level 4, and 70 in level 6. Each frame scan_objects ($0F0F in level 4) walks the list from the last object to the first. An object that comes within the camera's window, from 26 pixels left of the camera to less than 346 pixels right of it and between lines $14 and $D6 below its top, takes the first free one of 11 slots. An object that leaves the window gives its slot back.

Every slot has a state, and update_objects ($117E) runs the behaviour for that state through a table. The behaviours are routines with names that say what they do: behave_attack_left and behave_attack_right, behave_walk_left and behave_walk_right, behave_vertical_patrol, behave_radial_shot, behave_lobbed_shot, behave_flashing_hazard, behave_energy_pickup and behave_score_pickup. Before a behaviour runs, player_hit_test ($101C) tests the slot against Darkman. Level 6 adds a map switch (behave_map_switch, $13AF) that, on contact, writes zeros over four cells of the level map, and an area trigger ($1F6A) that, once the player passes a map position, writes 3 into the high byte of the height of objects 41 to 44.

07 · The mask game

A scan cursor, twelve slices, and a timer

Levels 1, 3, and 5 end in a game of their own, which the story text calls preparing a disguise. The main loop of level 3 jumps to mask_main ($4286) when the level-done flag is set, level 5 does the same through mask_screen ($29F1), and level 1 reaches it through $4A8F. A raster interrupt chain of three handlers ($5177, $51DB, $5242 in level 3) runs it.

The player moves a cursor with the joystick in steps of 8 pixels inside a window (cursor_move, $49E9) while a three-digit timer counts down (mask_timer_tick, $535D). Each press of fire captures a 3 by 3 block of characters (fire_capture, $46C5), and match_check ($475F) tests whether the cursor stands on a picture's place. Twelve captures, or an empty timer, end the game, and scan_cursor ($48BA) then walks the cursor along a fixed scan path, sounding when it reaches a slice that matched. mask_report ($445F) prints MASK COMPLETE or INSUFFICIENT DATA TO GENERATE MASK, and a dissolve ($448C) erodes the captured picture in 30 rounds, each ANDing every byte of a 256-byte buffer with one of four random masks. Five objects slide in and out of the picture as the game runs (objects_run, $4BB9).

The three mask games are the same routines at different addresses.

08 · The chase

Level 5 is a script, not a map

Level 5 has no scrolling map. The player hangs on a rope under a flying machine, sprite 3, and swings with the joystick (player_swing, $126D) while four walls, flying obstacles, and the shots of a chopper cross the screen. The chopper, sprites 0 to 2, follows a script of four-byte entries: a step in X, a step in Y, a number of frames, and a flag that makes it shoot (chopper_step, $1417). The walls move down and up along their own rows (wall_move_down, wall_move_up), and a time bar runs down (time_bar_step, $0B0A). When a collision comes after the bar has run out, finale_step ($0A7B) fills the screen with a closing pattern, row by row, and the level ends in the mask game.
