1985 · Domark

A View to a Kill

This minisite was curated by unorig, air.

City Hall’s clock and energy do nothing, a stray return instruction keeps Paris’s locator lamp dark, and the mine checks a different combination from the one fans quote. Here are the five programs in the order they load: the intro, the three missions, and the ending.

01 · The intro

A gun barrel, a gunshot, a spoken line, and the credits, all driven from one interrupt

The intro plays by itself for about two minutes and then loads the menu. The intro never reads the joystick.

The Domark logo over the words D O M A R K presents you as James Bond 007
The Domark logo, put together from six sprites.

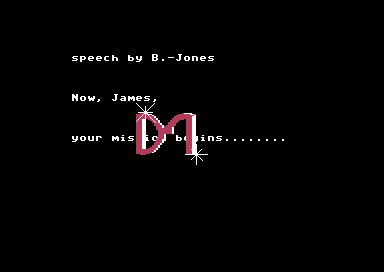

The last credits: Speech synthesis by David Aubrey-Jones, and Now, James, your mission begins
The end of the credits, where the intro stops.

The running order

A raster interrupt runs one of three modes, music only, the gun barrel, or the credits, and every mode ends by stepping the tune ($CC00). The main program steps through the scenes:

SecondsWhat
0.3two white dots, the films' opening spotlights, roll across the screen ($C000)
4.5the gun barrel is wiped in from the right, then scrolls left as Bond walks in ($C100, $C809)
11.0the gunshot, and blood runs down the screen ($CABC, $C840)
15.6the screen shakes ($C900)
21.1the speech ($A000)
23.3the picture dissolves ($CA80)
24.3the Domark logo flies together ($C430)
29.7D O M A R K presents you as JAMES BOND 007 ($90A0)
37.0the credits scroll, a new line every 0.8 s ($C54E)
103the last credit line; the music plays on while the logo sparkles ($C476)
118the music stops and the menu loads from the disk ($C4DB)

The times are at 50 frames a second, so a real machine takes a little longer.1 The barrel scrolls a pixel every two frames across two screen banks, the picture moving two character cells each time the banks swap ($CD00, $C170). The blood is the barrel's picture changed a line at a time, turning white pixels red ($C840).

The FRGCB blog compares the versions and finds that only the Commodore 64 plays the whole gun-barrel sequence, "from the beginning, with the smaller white spotlights and all, and Bond walking from the right side of the screen and turning towards the camera before shooting".

A bug that waits on the raster beam

Before the credits, the intro asks for its next interrupt on a raster line the screen never reaches, and relies on a later write to put it right. That write copies back whatever line the beam is on, so if the beam were low on the screen at that moment the mistake would stay, and the credits and the music would stop for good.2 The Discoveries tab has the detail.

02 · Paris

Catch May Day once her altimeter reads below 60, before the car is wrecked

May Day circles down over Paris and lands at one of eight points. The car has to touch her once she is low enough.

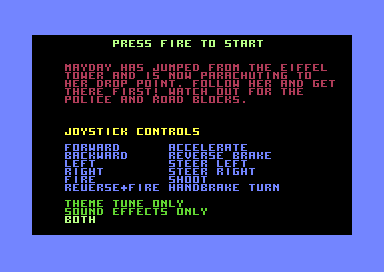

The Paris instruction page
The instruction page, which is silent. Up and down choose music, effects, or both.
The Paris chase in progress
In play: the view ahead, the cockpit with the altimeter, and the map.

May Day

She starts high above the map and circles outward until her circle reaches a limit, then heads for one of eight landing points, picked with the sound chip's noise generator as a random number ($5200, $4F00). The altimeter starts at 900 and drops one for every 21 of her steps ($5315). Below 060 a catch becomes possible: the car's sprite has to touch hers ($5142). At 000 the chase is lost.

The cockpit has a locator lamp, and the program has the code to flash it and beep faster the closer she is ($4A50). The routine’s only call is cut off by a return instruction at $51E9, so the lamp never lights and the beep never sounds.3

The car

Speed is a delay between steps, from 1, the fastest, to 63 ($0340). Pulling back past the slowest speed puts the car in reverse. Holding the stick to one side turns to the next of eight headings and stops there. Fire shoots, and fire in reverse at speed is a handbrake turn of four steps ($5B9B). Hitting a wall or an unshot police car bounces the car back, slows it and adds one to the damage, and a crash that takes the damage to 40 loses the chase ($51A2). Roadblocks add to the same count but end the chase only at 47 ($49A0).

Secret: the police follow the route you drove

Fourteen police cars share three sprites. A police car on a junction takes its heading from the junction's map cell ($4C9D). When the player's car leaves a junction, the game writes the way it went into that cell ($4E80). So the police turn wherever the player turned, and trail behind along the same streets.

Every other cell the player leaves adds one to a pursuit counter ($4EA0). At 20 a roadblock appears at one of 32 places and the counter drops back to 18 ($4900), so after the first there is a new roadblock every couple of cells. Driving into one clears it and costs one point of damage ($4940).

The end

A catch types out a telex whose code for City Hall is written into the program as text, CCPHJ ($8140). Losing goes back to the instruction page with a spoken comment. There is no score.

The town map, with May Day's eight landing points →

03 · City Hall

A 75-room building where only the fire can end the game

Bond walks through City Hall one room at a time, carrying objects and using them from a menu, to reach Stacey and take her out through a door that opens only at the end.

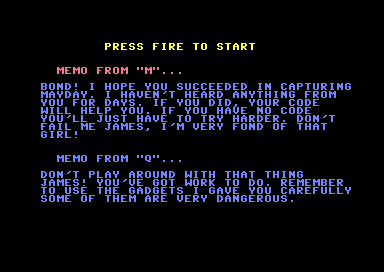

The City Hall memos
The memos from M and Q before the section.
City Hall in play
A room, the panel, and the building in miniature with its lit windows.

The building

Five floors of 15 rooms, 14 bytes each ($4222). A room's bytes say which doorways it has and whether Bond can pass, which furniture stands in it, whether it is burning, and its temperature from 0 to 15. Lifts move 15 rooms, one floor, at a time ($6C60). The miniature building under the room lights the windows of the burning rooms.

Objects and words

Fire opens a strip of three item icons that scrolls, then a list of words: RETURN, DROP, SEARCH, USE, FOLLOW, STAY, GIVE, ABORT ($7A00, $8000). There are 91 objects, each with a room, a weight and a use ($63D0); the load Bond can carry is limited by weight ($7D6A). USE picks one of 24 handlers ($7CA6). Buckets are filled at a tap and thrown to hold a room's fire back; keys open doors between given rooms; a tool forces doors and uses something up each time; some objects are energy for Bond or Stacey, and others turn into energy in two particular rooms. Stacey follows only after one particular object is used in one particular room ($7F00), and while she is in Bond's room the panel says STACEY IS WITH YOU ($8990). ABORT opens a screen that starts the section again or loads the menu (How it fits together). Six kit pieces, found one by one, build up the object that opens the last doorway ($8356).

Bond in four sprites

Bond is drawn with four sprites in high resolution. Two make his figure, and on every pass of the game loop two more are laid over it, picked for the way he faces and the step of his walk ($8900).

The clock and the energy are for show

The fire spreads once every 14 × 256 frames, about 72 seconds, and a room catches when its temperature reaches 15 ($94F0). The energy objects set a value for Bond and one for Stacey, which the game never reads or draws ($83DD), and the clock counts up from 10:00:00 ($6E40), and the game never reads it either. Only the fire can end the game, as the next part says.

Bug: a burning room ends the section through the middle of an instruction

The main loop checks whether Bond's room is burning ($7069). If it is, a branch lands in the middle of another instruction, at $7090, and the processor runs three bytes as instructions they were never meant to be, one of them undocumented, before reaching the end test's check of the code. With CCPHJ typed at the start, that shows the mission-complete screen and the next code; without it, a new game starts.4

The end

The intended end is room 76, past the last doorway, with Stacey following ($708A). With the code typed, the section shows CONGRATULATIONS 007 and the code for the mine, DB4CT, fixed text at $1334. Without it, the game simply starts again.

The map of the building, when each room catches fire, and two ways to finish →

04 · The mine

Five digits, a detonator, and one column: how the bomb is defused

A cave 150 tiles wide and 100 deep scrolls around Bond, who stays in the middle of the screen. The clock counts down from 90 minutes.

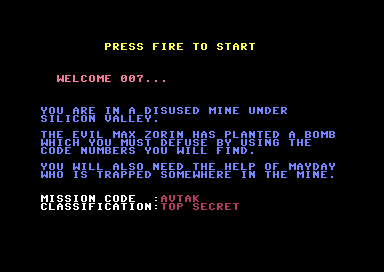

The mine briefing
The briefing.
The mine in play
In play: the panel's clock, the meter, and the item strip.

Moving

Bond walks, jumps, falls, and climbs ($2700). A long fall hurts him, and so does touching a lit hazard. Every hurt costs the clock about 29 seconds: for 30 passes the clock runs 48 extra ticks each ($2B2C). There are no lives. Conveyor belts carry him, and a lever turns them round ($1900, $3A0D). A lift is called with GET LIFT and ridden with the stick ($3A95).

May Day and the winch

Dynamite placed near a rock fall marks it, and the lighter clears it with a shake of the screen ($3827, $39E0). Blasting the right rock fall frees May Day ($3E00). The winch takes four parts, and WINCH DOWN works only once May Day is free and Bond stands in the right place ($3F23).

The bomb

Numbered objects enter digits, 1 to 7, when used in the right part of the mine ($389C). With five digits entered and the winch complete, Bond can take the detonator ($375B). Carried to one column of the map, at the left edge, it runs the end test ($25E0): the digits must be 6, 7, 1, 3, 4 ($26F0) and the code DB4CT must have been typed. Then the screen shows the code for the ending, ILVCT. Otherwise the bomb goes off: four flashes, and the section starts again ($25D0).5

DigitsDB4CT typedResult
6 7 1 3 4yesCONGRATULATIONS 007, code ILVCT
6 7 1 3 4nothe bomb goes off
five otherseitherthe bomb goes off
fewer or more than fiveeithernothing: play goes on

The game never tells Bond whether a digit was right. Every number gets the same beep ($38B4), and the number stays in his list, so it can be used again by mistake. The count of digits has no limit ($38AA). After a sixth digit the detonator can no longer be taken, because the pick-up wants exactly five ($375B). If Bond already carries the detonator, the end test finds six digits and lets play go on, with no win and no explosion. The count only comes back to 0 after 256 digits, and on the way the extra digits are written over the game's own records: the 30th over the count of winch parts fitted, and the 36th over the flag that says May Day is free ($1B78). One digit too many ruins the mine, however much of the 90 minutes clearing it took.14

The Bond fan site MI6-HQ gives the combination as 32768, but the program checks 6, 7, 1, 3, 4. The mine’s numbered objects enter only the digits 1 to 7, so 32768 cannot even be entered.

The map of the mine and the order to do things in →

05 · The ending

Three seconds of animation, and no score

The last program asks for the mine's code, ILVCT, and then plays a short scene over two pictures. It never loads anything else or prints a message.

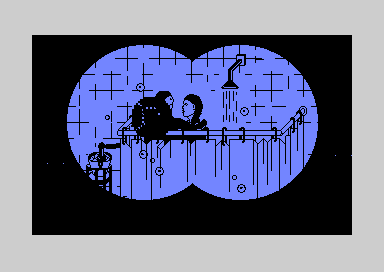

Bond and Stacey in the shower, seen through binoculars
The first picture: the shower, seen through binoculars.

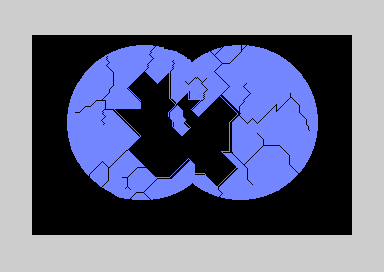

The binocular lenses cracked
The second picture: the same lenses, cracked.

What plays

The code prompt is the same routine as City Hall's and the mine's ($804C). Here RETURN without the code only asks again, so the ending cannot be seen without ILVCT. The scene itself is straight-line code ($1000): the shower picture in high resolution, then eight steps of sprites over it with a pause of about a third of a second after each. A man's head seen from behind turns to the left. A bar grows out of the small machine at the lower left, and a round object flies from the machine towards the head, growing to double size on the last step. Then the program switches to the cracked picture, turns the sprites off and stops ($1186).

The scene is the film's last one. The FRGCB blog describes it as "viewed through the eyes (or cameras) of Q's remote-controlled security dog droid thing", which is why the pictures have the shape of two lenses.

The whole scene lasts about 2.8 seconds. There is no sound, and no code or score is printed. RESTORE brings the prompt back, over the cracked picture, since the program resets none of the display, so ILVCT has to be typed blind to play the scene again.
